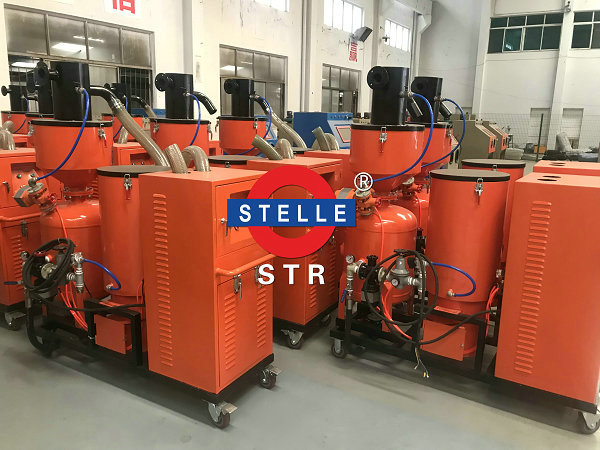

無塵自動循環回收噴砂機系列

◆企業產品顯著特點 Product features（請往上面打開網頁(ye)挺(ting)大量情況(kuang)像片供可以參考）

環保型循環回收式噴砂機它集噴砂、回收、循環、分離、除塵于一體，無污染及砂料四處飛揚現象，是新一代的環保型噴砂設備。是我公司為繁重的噴砂工作設計生產的多用途、大工作半徑、高效率的新型環保噴砂設備。根椐負壓產生裝置不同，分為電動和全氣動兩大種機型。該設備采用壓縮空氣做動力，將磨料高速噴射到工件表面，經過磨料沖擊把工件表面銹污除去，使表面達到一定的清潔度和粗糙度，再通過真空泵（或多級真空發生器）產生的負壓，回收砂料和粉塵，并通過設備的砂塵分離系統將完整的磨料分離繼續循環使用，粉塵與銹污進入集塵桶。在手把開關控制下，設備的噴砂、回砂、砂塵分離、砂料循環、粉塵過濾等所有動作自行完成，工作環境干凈無污染，作業現場達到“GB103328-10333-89”車間冷空氣有害氣體衛生管理條件。砂料、有害氣體智能二手回收、剝離、無限循環適用，功課現廠凈無有害氣體感染。產品區域環境保護設定，很大增強了員工的勞功的強度和功課區域環境擁有噴吹閥傳動裝置，可半手動消除凈水器濾芯粉塵。內部自帶分水凈化器。可對壓縮視頻空氣的來首次油水離心分離離心分離。半手動送料機，將吸砂頭放進去砂料中，進行真空環境泵設計將半手動送料機。PLC可程序編寫掌握（選型），料位報案功能性(選裝)。配有調壓開關按健、反吹風按健。穩定性的氣控控制系統與爐料閥。本職工作弧長20-70米，外表面正確處理技能等級達Sa2.5-3級。系統性能的安全手表有防水能力電壓墻壁插板電壓線電源線，便便于快捷方法。系統性能控住電壓飛機維修墻壁插板電壓線電源線便便于快捷方法。特殊外觀的防灰控住電源開關面板與電機控制系統箱。維護與保養與需要維護檢修特意便便于快捷。車式機柜格局，防潮防灰，移動手機便便于快捷。機柜門邊框用于便于快捷門瑣相連接，拆御便便于快捷。車把電源開關控住（電機控制系統DC24V）。一機三用，都具有放開式、化工業吸砂器、節能型五種機器的功用。噴砂主機設備用于特殊性控住電路開關，工作任務各種壓力在0.2Kpa-0.8Kpa領域內任一設定，可滿意區別零部件的噴砂技術需求。選擇領域：除銹方法、除噴漆、管道焊接處   理（具有304不銹鋼304焊接還有其身邊的去黑、去焊渣治療）去棱刺、飛邊、陽極氧化皮、304不銹鋼304，鋁漆層的素雅型亞光治療（耐污性好一點、可遮住刮花）、去混泥土土、石雕漆層污圬等治療。

Features: Environmental protection cycle recovery type sandblasting machine sets of sandblasting, recycling, circulation, separation, dust removal in a body, no pollution and sand material flying around phenomenon, is a new generation of environmental protection sandblasting equipment. The machine is our company for heavy gush arenaceous job design of multi-purpose, the great work radius, high efficiency of the new environmental protection sandblasting equipment. Root tree produced negative pressure, divided into different device and electric pneumatic two types of all. The equipment adopts compressed air do motive force, abrasive high-speed spray into the surface of workpiece, through the surface of workpiece abrasive impact and remove rust surface, it reaches a certain cleanness and roughness, again through the vacuum pump (or multi-stage vacuum generator) creates negative pressure, recycling waste materials and dust, sand and through the equipment of dust separation system will complete abrasive separation recycling, and continue to dust pollution into the dust collection barrel rust. In hand the switch control, equipment of sandblasting, back to the sand, sand dust separation, sand material circulation, dust filter to complete all action, working environment clean no pollution, work safety to "GB103328-10333 89" workshop air dust health standard. The waste materials, dust the automatic recovery, separation and recycling, the work site clean and free of dust pollution. Environmental protection equipment design, has greatly improved the labor intensity and work environment with blower, can automatically remove dust filter. Built-in water filter. May to the compressed air in secondary water-oil separation. Automatic feeding, will suck sand head into the waste materials, vacuum pump system will start in the automatic feeding. PLC programmable control (optional), material place alarm function (optional). With pressure regulating knobs, counter blowing button. Steady air control device and abrasive valve. Work 20-70 meters radius, surface treatment level of Sa2.5-3 grade. With safety waterproof power socket plug, convenient operation. Configuration control power plug sockets aviation easy operation. Unique beautiful dustproof control panel and the electric. Maintenance and overhaul special convenient. The car type structure, rain dustproof, convenient to move. The cabinet door plank fast door, more convenient to assemble and disassemble zoar connection. The switch control (hand electric control DC24V). One machine with three, with open, industrial suck sand device, environmental protection function of three equipment. Gush arenaceous host machine adopts special control circuit, working pressure in 0.2-0.8 range Kpa Kpa arbitrarily regulate, and can satisfy different requirements of sandblasting process workpiece. Use scope: derusting, except for paint, weld processing (including stainless steel weld and its surrounding the to black, welding slag processing) to deburr, flash, stainless steel, aluminum oxide skin, the elegant type inferior smooth surface treatment (to bear or endure corrupt the gender is good, can cover scratch), to concrete, stone carving surface dirt processing.

◆常見能力基本參數 Main technical parameters

設備技(ji)術參(can)數 Model	STR-B型無塵自動循環回收式噴砂機
任務電源線 Work power	380V 50HZ
大(da)氣(qi)氣(qi)壓 Air pressure	5-7kg/cm2
耗氣量 Gas consumption	3m3/min
馬達功效(xiao) Motor power	4kw
業務的效率 Work efficiency	6-10m2
事業圓(yuan)的半徑 Work radius	10m 可(ke)要根據市場需求增(zeng)長，具(ju)體化服務咨詢網上客服
崗(gang)位(wei)表(biao)現形式 Work form	一鍵(jian)循壞(huai)二手回收Automatic cycle recovery
深度清理平衡等級 Clean level	Sa2-3
粗糟度 Roughness	60μm前后
單重 Weight	260kg
內部結構尺寸圖 Shape dimension	1380×830×1700mm
砂(sha)料(liao)規格型(xing)號 Sand material specifications	20-100#綜上(shang)所(suo)述(shu)（1.0mm-0.04mm）

◆可用于條件 Applicable scope

1.環保性(xing)請求高(gao)且無(wu)很多安裝除塵設施(shi)設備設施(shi)設備的公(gong)共場(chang)合；

2.正確處理高等級較高。

1. High environmental protection requirement and without any dust removal equipment occasion;

2. Higher processing level.

用到范圍之內：噴砂除銹、除刷漆焊接件加工去鋸齒、飛邊、陽極氧化皮不銹鋼材料、鋁合金型材表面層的典雅型亞光治理（耐污(wu)性良好、可覆蓋刮破）去水泥混疑土土、石雕面污(wu)圬等(deng)治理。

（大概資科(ke)可參(can)考資料A型或打電(dian)話我集團）

Applicable scope: derusting, clean paint processing to weld burr, flash, stainless steel, aluminum oxide skin surface elegant type to bear or endure corrupt processing (matt better properties, can cover scratch) to concrete, stone carving surface dirt processing. (specific information can be A reference type or call our company)

◆ 品牌特質 Product features

此噴砂機戶外工作噴砂無粉塵污染，自動循環回收的環保型設備，我公司研發的C型無塵噴砂機屬于環保型無粉塵噴砂處理機，此機體積已解(jie)壓縮，需求(qiu)就是說(shuo)利于室內裝(zhuang)修施工挪動利于，有效的的縮減(jian)了工作難度，有時候除(chu)理效果在在國內差不多型(xing)貨品(pin)高效；獲(huo)得(de)各位用(yong)戶的不一認證，并就已獲(huo)得(de)了寬泛的線下推(tui)廣和操作！（特定資(zi)科可決定性A型(xing)或詳詢我工廠）

features: this machine introduces advanced foreign technology research and development of outdoor work gush arenaceous no dust pollution, automatic cycle recovery of environmental protection equipment. Our company’s C type clean sandblasting machine belong to the most advanced domestic environmental protection no dust gush arenaceous processor, the machine has to minimize, volume compression purpose is convenient outdoor construction convenient to move, greatly reduce the labor intensity, and processing efficiency in domestic products with type fastest; Our customers get a consensus, and has been widely promotion and use! (specific information can be A reference type or call our company)

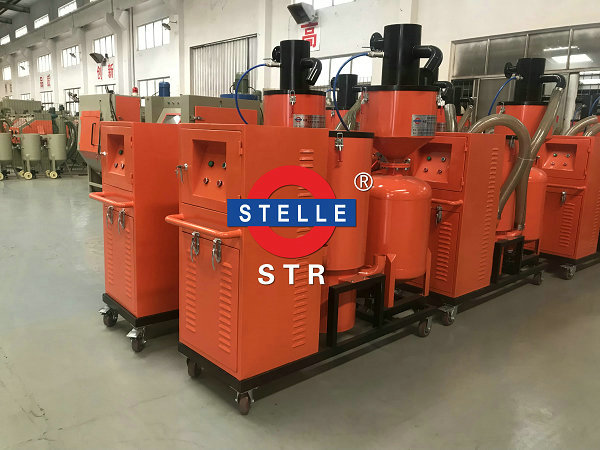

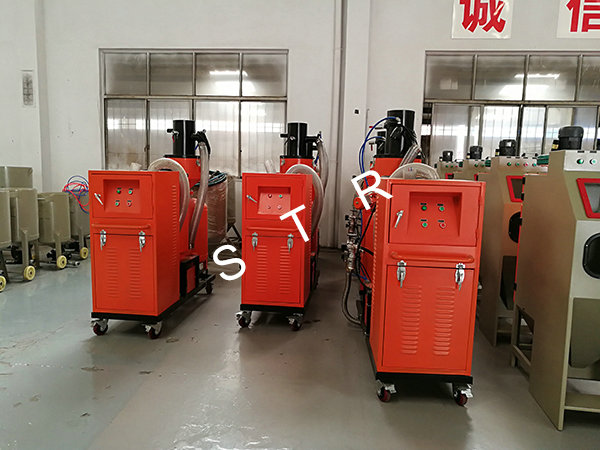

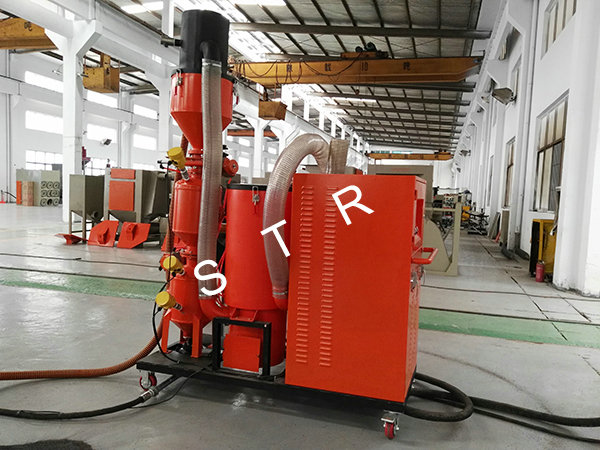

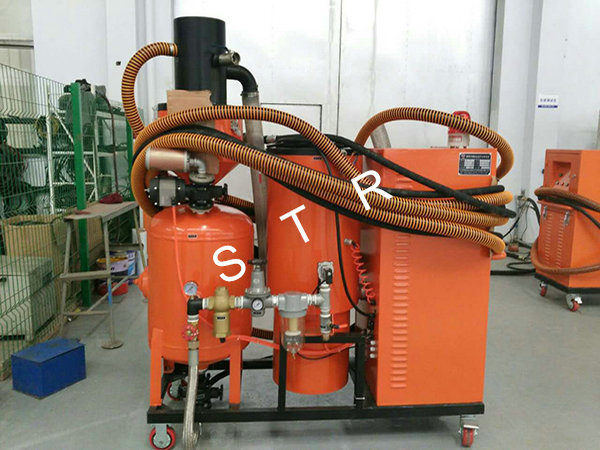

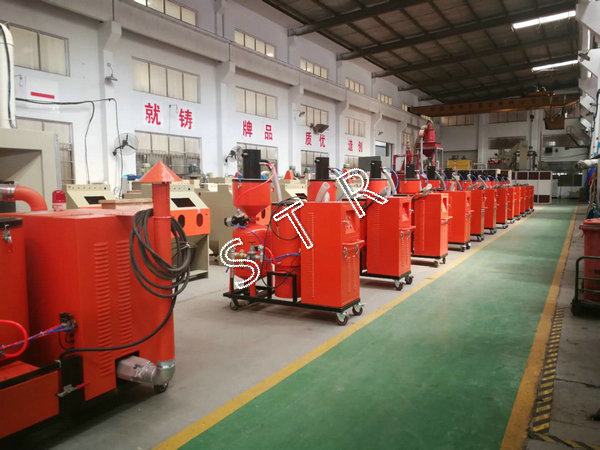

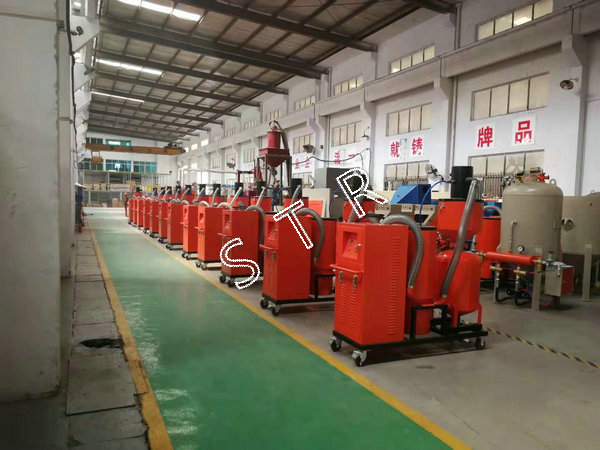

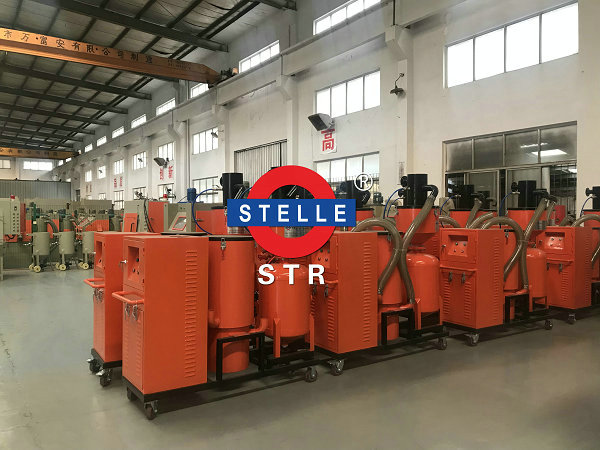

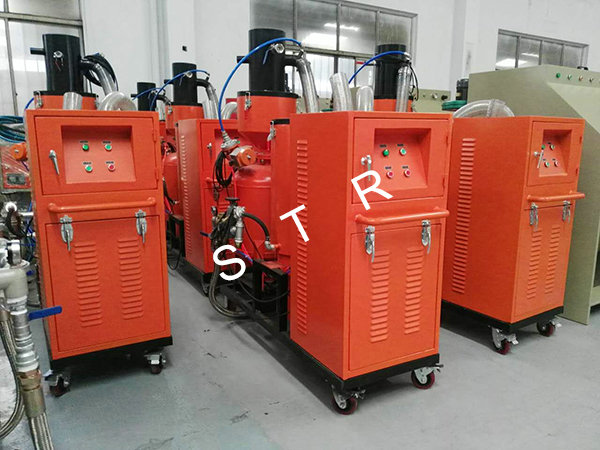

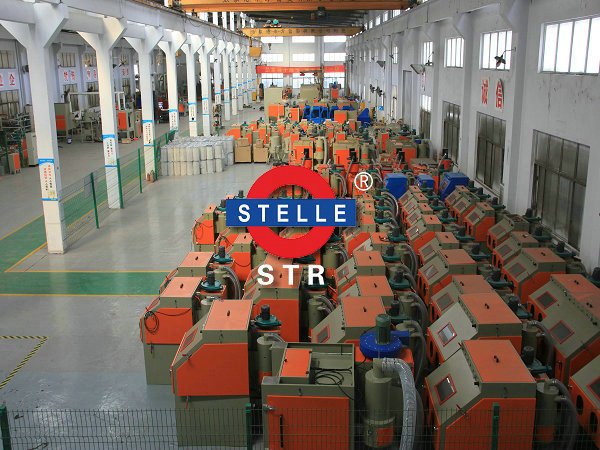

部份無塵自動循環環保型噴砂機案例:
