◆產品的優點和缺點 Product features
1. 來設(she)計新意,外貌美觀大氣(qi),綠色體驗好(hao);
2. 能(neng)自由調節(jie)式漩風離心區分機,能(neng)將要用(yong)金剛(gang)石工(gong)具(ju)與(yu)細(xi)小粉塵爆炸離心區分,好的金剛(gang)石工(gong)具(ju)馬上(shang)用(yong)到;
3. 主要是零核(he)心部件選用上等國外產品,用生存期(qi)長;
4. 加工處理產(chan)品工件表面能均;
5. 多治具構思;控制步驟員可直接控制步驟噴砂。會按照老客戶需要,可供選擇擇自動式改手動或自動式 ;可按用戶規范要求為您加工定制!
1. Novel design , beautiful shape, good environmental protection effect;
2. Adjustable cyclone separator, can be used with tiny dust separation, good abrasive continue to use;
3. The main components uses the high quality import parts, long service life;
4. Machining surface evenly;
5. Program design; An operator can also operate sandblasting. we can choose manual or automatic according to customer needs.
◆用于區間 Applicable scope
木板(ban),我的(de)電腦機(ji)殼,功放(fang)音(yin)響蓋板(ban),面包烤盤(pan)等(deng)平面磨及(ji)方體鏜孔的(de)噴砂加工廠。
Plate, the computer case, music panels, sandwich baking dish wait for plane and workpiece of sandblasting processing.
◆主要方法參數設置 Main technical parameters
|
工(gong)具技(ji)術參(can)數 Model |

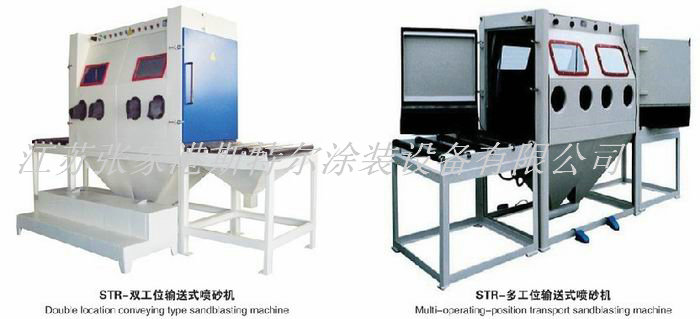

STR-多工位輸送式噴砂機 |
|
整個機械大小 Complete machine size(mm) |
3000×1000×1700 |
|
運作(zuo)個人空間 Work space(mm) |
2000×1000×800 |
|
外傳送面積(ji) Conveying the size(mm) |
500×1000×1000(2件) |
|
凈化箱尺碼 Dedust box sizes(mm) |
600×600×1800 |
|
脫離器三(san)相異步(bu)電機 Separator motor |
220V 50HZ 550W |
|
提取器風口尺寸 Separator air volume |
8.5m3/min |
|
文件壓縮(suo)氣源 Compressed air source |
2-8bar(kg/cm2) |
|
噴槍(qiang) Spray gun |
2把 |
|
照明 Floodlight |
兩盞30W防爆型燈 |
|
儀器(qi)重量體積(ji) Machine weight |
550kg |
